The PowerBASIC COM Browser Tutorial

As described in the What is the PowerBASIC COM Browser topic, the PowerBASIC COM Browser is a browser utility application that exposes the Interfaces, Methods, and Properties in a type-library. It is also used to generate PowerBASIC compatible source code to be used in your application.

We will walk through and example of using the PowerBASIC COM Browser to locate a registered type library, generate the PowerBASIC compatible source code, and then use this source code in a PowerBASIC For Windows application.

  1. Start the PowerBASIC COM Browser

  2. Locate the Microsoft Agent Control 2.0 type library. This will be listed under the "Registered Library" heading with the text of "Microsoft Agent Control 2.0" or under the "Filename" heading of "agentctl.dll". If you do not have this type library installed it can be downloaded for free from http://www.microsoft.com/msagent/downloads/user.aspx. After installing the Microsoft Agent Control 2.0 type library click the Reload button to update the list of registered type libraries.

  3. Double-click on the Microsoft Agent Control 2.0 type library listed in the list of Registered type libraries, to generate the PowerBASIC compatible source code for this object.

  4. Click the "Save As..." button and save it with the name of "agent.inc"

  5. Close the PowerBASIC COM Browser

  6. Start the PowerBASIC For Windows 9 IDE

    Click the Create New File button in the IDE

  7. Paste the following code into the new file created in the IDE

#COMPILE EXE
#DIM ALL


%ID_START      = 1000
%ID_STOP       = 1001
%ID_EVENTLIST  = 1003


GLOBAL hDlg AS LONG


#INCLUDE "agent.inc"
#INCLUDE "Win32api.inc"


' Display an error message
MACRO DisplayError(txt)
  IF ISTRUE(ISOBJECT(AgentEvents)) THEN
    ' Detach the events handler
    EVENTS END AgentEvents
  END IF


  ' Print the error and then exit the callback routine
  MSGBOX txt, %MB_OK OR %MB_ICONERROR, "MS Agent Error"
  EXIT FUNCTION
END MACRO


CALLBACK FUNCTION DlgProc
  STATIC AgentCtrlEx  AS IAgentCtlEx
  STATIC AgentEvents  AS Int__AgentEvents
  LOCAL  StartX       AS LONG
  LOCAL  StartY       AS LONG
  LOCAL  CharW        AS LONG
  LOCAL  CharH        AS LONG


  SELECT CASE AS LONG CBMSG
    CASE %WM_INITDIALOG
      ' Create the Agent Control Object
      AgentCtrlEx = newcom $PROGID_Agent2
      IF ISFALSE(ISOBJECT(AgentCtrlEx)) THEN
        DisplayError("The Microsoft Agent Control 2.0 is not installed. This control can be " + _
                     "downloaded from http://www.microsoft.com/msagent/downloads/user.aspx")
      END IF


      ' Create the Events handler interface
      AgentEvents = CLASS "Class_Int__AgentEvents"
      IF ISFALSE(ISOBJECT(AgentEvents)) THEN
        DisplayError("Error creating the event interface.")
      END IF


      ' Attach the Events handler interface to the Agent Control
      Events FROM AgentCtrlEx CALL AgentEvents


      'Enable the Start button
      CONTROL ENABLE CBHNDL, %ID_START


    CASE %WM_COMMAND
      SELECT CASE AS LONG CBCTL
        CASE %ID_START
          IF CBCTLMSG = %BN_CLICKED OR CBCTLMSG = 1 THEN
            ' Load the Merlin agent
            AgentCtrlEx.Characters.Load("Merlin", "Merlin.acs")
            IF OBJRESULT <> %S_OK THEN
              DisplayError("The Microsoft Agent Control 2.0 Merlin Character is not installed. This character " + _
                           "can be downloaded from http://www.microsoft.com/msagent/downloads/user.aspx")
            END IF


            ' Show the Merlin agent on the screen
            AgentCtrlEx.Characters.Character("Merlin").Show


            ' Get the Width and Height of the Merlin agent
            CharW = AgentCtrlEx.Characters.Character("Merlin").Width
            CharH = AgentCtrlEx.Characters.Character("Merlin").Height


            ' Get the Width and Height of the Desktop
            DESKTOP GET CLIENT TO StartX, StartY


            ' Find the center of the desktop for Merlin agent
            StartX = (StartX - CharW)\2
            StartY = (StartY - CharH)\2


            ' Move the Merlin agent to the center of the desktop
            AgentCtrlEx.Characters.Character("Merlin").MoveTo(StartX, StartY)


            ' Have the Merlin agent play the trumpet
            AgentCtrlEx.Characters.Character("Merlin").Play(UCODE$("Announce"))


            ' Make the Merlin agent speak
            AgentCtrlEx.Characters.Character("Merlin").Speak("With \map="+$DQ+"PowerBAYSIK"+$DQ+"="+$DQ+"PowerBASIC"+$DQ+"\ \Pau=300\ you can be a wizard too!")


            ' Disable the Start button and enable the Stop button
            CONTROL DISABLE CBHNDL, %ID_START
            CONTROL ENABLE  CBHNDL, %ID_STOP
          END IF


        CASE %ID_STOP
          IF CBCTLMSG = %BN_CLICKED OR CBCTLMSG = 1 THEN
            ' Stop all actions by the Merlin agent and unload it
            AgentCtrlEx.Characters.Character("Merlin").STOP


            AgentCtrlEx.Characters.Unload("Merlin")
            ' Enable the Start button and disable the Stop button
            CONTROL ENABLE  CBHNDL, %ID_START
            CONTROL DISABLE CBHNDL, %ID_STOP
          END IF


      END SELECT


    CASE %WM_DESTROY
      IF ISTRUE(ISOBJECT(AgentEvents)) THEN
        ' Detach the event handler interface
        Events END AgentEvents
      END IF
  END SELECT
END FUNCTION


FUNCTION PBMAIN () AS LONG
  DIALOG NEW 0, "COM Browser Tutorial", 201, 122, 198, 115, %WS_POPUP OR %WS_BORDER OR %WS_DLGFRAME OR %WS_CAPTION OR _
    %WS_SYSMENU OR %WS_MINIMIZEBOX OR %WS_CLIPSIBLINGS OR %WS_VISIBLE OR %DS_MODALFRAME OR %DS_3DLOOK OR _
    %DS_NOFAILCREATE OR %DS_SETFONT, %WS_EX_CONTROLPARENT OR %WS_EX_LEFT OR %WS_EX_LTRREADING OR _
    %WS_EX_RIGHTSCROLLBAR, TO hDlg
  CONTROL ADD BUTTON,  hDlg, %ID_START, "Start Agent", 5, 5, 50, 15, %WS_CHILD OR %WS_VISIBLE OR %WS_DISABLED OR _
    %WS_TABSTOP OR %BS_TEXT OR %BS_PUSHBUTTON OR %BS_CENTER OR %BS_VCENTER, %WS_EX_LEFT OR %WS_EX_LTRREADING
  CONTROL ADD BUTTON,  hDlg, %ID_STOP, "Stop Agent", 5, 25, 50, 15, %WS_CHILD OR %WS_VISIBLE OR %WS_DISABLED OR _
    %WS_TABSTOP OR %BS_TEXT OR %BS_PUSHBUTTON OR %BS_CENTER OR %BS_VCENTER, %WS_EX_LEFT OR %WS_EX_LTRREADING
  CONTROL ADD LISTBOX, hDlg, %ID_EVENTLIST, , 70, 0, 125, 110,  %WS_CHILD OR %WS_VISIBLE OR %WS_TABSTOP OR %WS_VSCROLL, _
    %WS_EX_CLIENTEDGE OR %WS_EX_LEFT OR %WS_EX_LTRREADING OR %WS_EX_RIGHTSCROLLBAR


  DIALOG SHOW MODAL hDlg, CALL DlgProc
END FUNCTION

  1. Click the Save All button and save this file as "agent.bas" in the same directory that you save "agent.inc" to in step #4

  2. Open the "agent.inc" file in the IDE

  3. Search (CTRL+F) in the IDE for the text of "IAgentCtl event interface" (without the quotes). The methods of this interface are called when an event occurs in the Microsoft Agent Control. We will add code to these methods that will display the event that occurred in the dialogs listbox. Make the Int__AgentEvents, look like the following:

CLASS Class_Int__AgentEvents $CLSID_Event__AgentEvents AS EVENT
  INTERFACE Int__AgentEvents $IID_Int__AgentEvents
    INHERIT IDISPATCH


    METHOD ActivateInput <1> (BYREF CharacterID AS STRING)
      LISTBOX INSERT hDlg, %ID_EVENTLIST, 1, "Input Activated"
    END METHOD


    METHOD DeactivateInput <3> (BYREF CharacterID AS STRING)
      LISTBOX INSERT hDlg, %ID_EVENTLIST, 1, "Input Deactivated"
    END METHOD


    METHOD Click <2> (BYVAL CharacterID AS STRING, BYVAL BUTTON AS INTEGER, BYVAL Param_Shift AS INTEGER, BYVAL x AS INTEGER, BYVAL y AS INTEGER)
      LISTBOX INSERT hDlg, %ID_EVENTLIST, 1, "Click at ("+FORMAT$(x)+","+FORMAT$(y)+")"
    END METHOD


    METHOD DblClick <4> (BYVAL CharacterID AS STRING, BYVAL BUTTON AS INTEGER, BYVAL Param_Shift AS INTEGER, BYVAL x AS INTEGER, BYVAL y AS INTEGER)
      LISTBOX INSERT hDlg, %ID_EVENTLIST, 1, "Double Click at ("+FORMAT$(x)+","+FORMAT$(y)+")"
    END METHOD


    METHOD DragStart <5> (BYVAL CharacterID AS STRING, BYVAL BUTTON AS INTEGER, BYVAL Param_Shift AS INTEGER, BYVAL x AS INTEGER, BYVAL y AS INTEGER)
      LISTBOX INSERT hDlg, %ID_EVENTLIST, 1, "Drag Start at ("+FORMAT$(x)+","+FORMAT$(y)+")"
    END METHOD


    METHOD DragComplete <6> (BYVAL CharacterID AS STRING, BYVAL BUTTON AS INTEGER, BYVAL Param_Shift AS INTEGER, BYVAL x AS INTEGER, BYVAL y AS INTEGER)
      LISTBOX INSERT hDlg, %ID_EVENTLIST, 1, "Drag Complete to ("+FORMAT$(x)+","+FORMAT$(y)+")"
    END METHOD


    METHOD SHOW <15> (BYVAL CharacterID AS STRING, BYVAL Cause AS INTEGER)
      LISTBOX INSERT hDlg, %ID_EVENTLIST, 1, "Character is showing"
    END METHOD


    METHOD Hide <7> (BYVAL CharacterID AS STRING, BYVAL Cause AS INTEGER)
      LISTBOX INSERT hDlg, %ID_EVENTLIST, 1, "Character is hidden"
    END METHOD


    METHOD RequestStart <9> (BYVAL Request AS IDISPATCH)
      LISTBOX INSERT hDlg, %ID_EVENTLIST, 1, "Request Start"
    END METHOD


    METHOD RequestComplete <11> (BYVAL Request AS IDISPATCH)
      LISTBOX INSERT hDlg, %ID_EVENTLIST, 1, "Request Complete"
    END METHOD


    METHOD Restart <21> ()
      ' Insert your code here
    END METHOD


    METHOD Shutdown <12> ()
      ' Insert your code here
    END METHOD


    METHOD Bookmark <16> (BYVAL BookmarkID AS LONG)
      ' Insert your code here
    END METHOD


    METHOD Command <17> (BYVAL UserInput AS IDISPATCH)
      ' Insert your code here
    END METHOD


    METHOD IdleStart <19> (BYVAL CharacterID AS STRING)
      ' Insert your code here
    END METHOD


    METHOD IdleComplete <20> (BYVAL CharacterID AS STRING)
      ' Insert your code here
    END METHOD


    METHOD Move <22> (BYVAL CharacterID AS STRING, BYVAL x AS INTEGER, BYVAL y AS INTEGER, BYVAL Cause AS INTEGER)
      LISTBOX INSERT hDlg, %ID_EVENTLIST, 1, "Move to ("+FORMAT$(x)+","+FORMAT$(y)+")"
    END METHOD


    METHOD SIZE <23> (BYVAL CharacterID AS STRING, BYVAL Param_Width AS INTEGER, BYVAL Height AS INTEGER)
      ' Insert your code here
    END METHOD


    METHOD BalloonShow <24> (BYVAL CharacterID AS STRING)
      LISTBOX INSERT hDlg, %ID_EVENTLIST, 1, "Showing balloon text"
    END METHOD


    METHOD BalloonHide <25> (BYVAL CharacterID AS STRING)
      LISTBOX INSERT hDlg, %ID_EVENTLIST, 1, "Hiding balloon text"
    END METHOD


    METHOD HelpComplete <26> (BYVAL CharacterID AS STRING, BYVAL Param_Name AS STRING, BYVAL Cause AS INTEGER)
      ' Insert your code here
    END METHOD


    METHOD ListenStart <27> (BYVAL CharacterID AS STRING)
      ' Insert your code here
    END METHOD


    METHOD ListenComplete <28> (BYVAL CharacterID AS STRING, BYVAL Cause AS INTEGER)
      ' Insert your code here
    END METHOD


    METHOD DefaultCharacterChange <30> (BYREF Param_GUID AS STRING)
      ' Insert your code here
    END METHOD


    METHOD AgentPropertyChange <31> ()
      ' Insert your code here
    END METHOD


    METHOD ActiveClientChange <32> (BYVAL CharacterID AS STRING, BYVAL Active AS INTEGER)
      ' Insert your code here
    END METHOD


  END INTERFACE
END CLASS

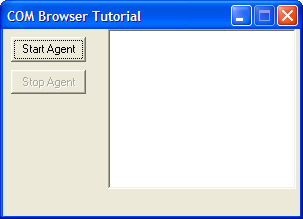

  1. In the IDE, click the compile and run button. The application will be displayed as



  2. Click the "Start Agent" button and the Merlin character will display in the top left corner of the screen then move to the center of the desktop and play a trumpet then speak. If you wish to hear the text shown in the balloon when Merlin is speaking, you will need to download and install the free SAPI 4.0 and a Text to Speech Engine from http://www.microsoft.com/msagent/downloads/user.aspx.

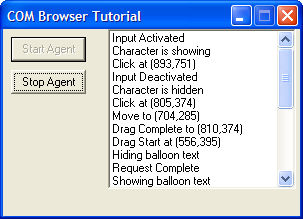

  3. You can click, double-click, drag and drop, hide (right-click on Merlin and select Hide), or show (right-click on Merlin in the systems tray and select Show) and see these events listed in the listview control on the dialog box.

  4. Click the Stop Agent button to stop and unload the Merlin character.
